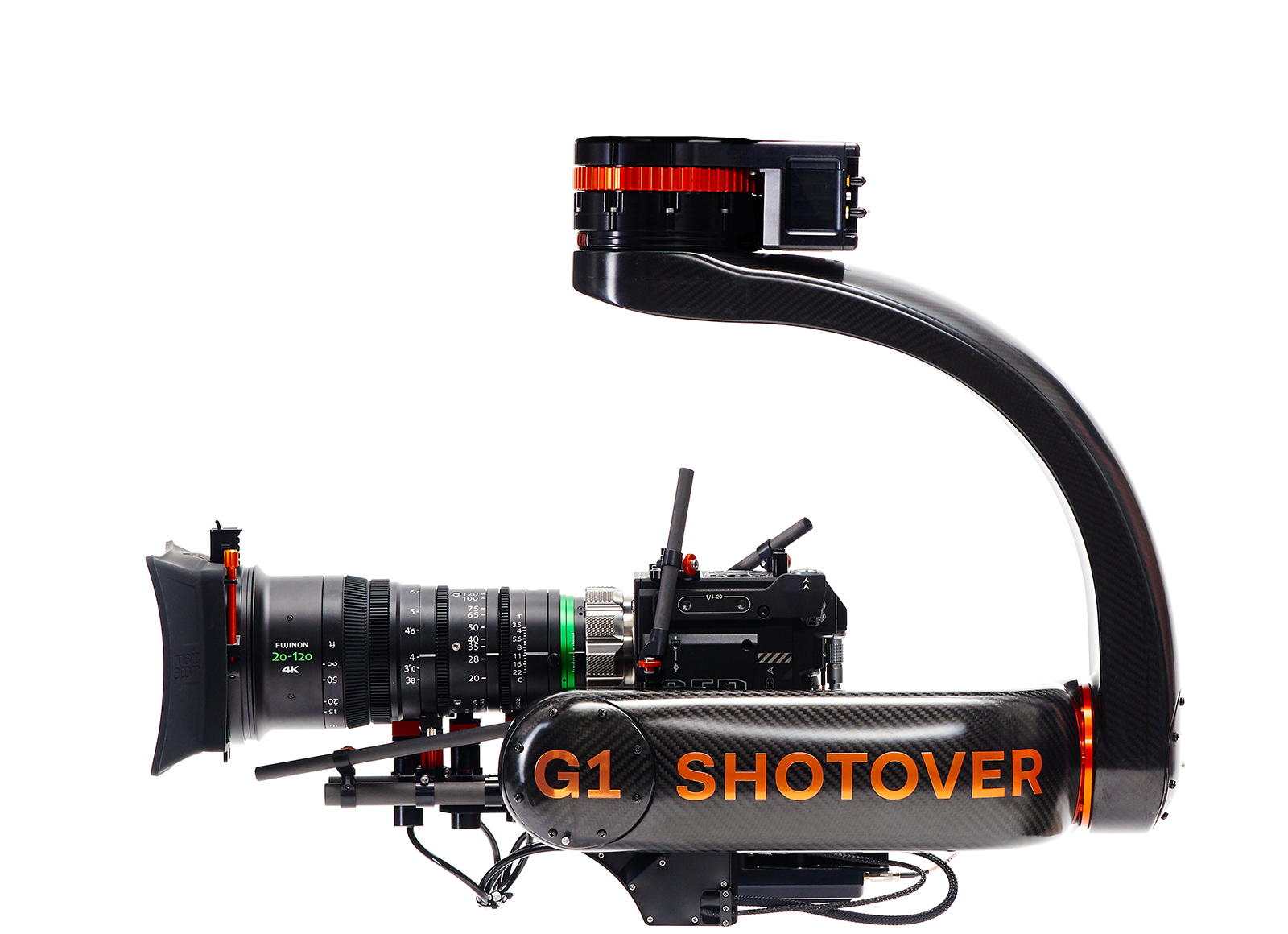

SHOTOVER - G1



A lightweight, weather resistant, gyro-stabilized gimbal platform that delivers unshakable stability with ultimate functionality. The SHOTOVER G1 can quickly be detached from the U1 multirotor and be mounted on motorcycles, tracking vehicles, cranes, cables and almost anything that moves. Buyers can choose between the U1, which includes both the multirotor and gimbal, and the G1, which is the gimbal without the aerial component.





KUKL RENTAL SHOTOVER G1 Camera Compatability

LENSES

Fujinon 25-300mm - All Cameras - OUR MOST POPULAR
ARRI/FUJINON Alura 18-80mm - All Cameras
ARRI/FUJINON Alura 45-250mm - All Cameras
Fujinon Cabrio 19-90mm - RED Epic X / Dragon & RED Weapon
Canon 17-120mm - RED Epic X / Dragon & RED Weapon
ZEISS Master Prime 18mm - RED Epic X / Dragon & RED Weapon
ZEISS Master Prime 25mm - RED Epic X / Dragon & RED Weapon



CAMERAS

ARRI Alexa Mini
RED - Weapon Helium S35
RED - Epic Dragon
Sony FS7



SHOTOVER G1 SYSTEM FEATURES

  • Gyro-stabilized gimbal system
  • Wireless video downlink
  • SHOTOVER FI+Z with lens motors
  • Components to install camera and lens combinations per matrix
  • Remote camera control (RED, Arri, Sony, Canon, Phantom)
  • Available as turn-key sUAS or as standalone gimbal
  • Compact size and weight allows affordable transport as freight or excess baggage
  • No ITAR restrictions or EAR licensing requirements
  • SHOTOVER Free-Runner adaptor head. Quickly change between handheld, sUAS, and mitchell mount
  • Easily integrated into film industry mounting platforms
  • Advanced payload balancing system
  • 360 degree continuous pan, tilt, and roll
  • Delivers unshakable stability and ultimate functionality
  • Customizable graphic overlay for real time operator feedback
  • Auto or steerable horizon with the most advanced steering capabilities on the market
  • HD video encoding & decoding for two video streams (HDMI or SDI)
  • Wired or wireless control



    Product Specifications

    STABILIZATION

    • 3-axis
    • High performance non-ITAR sensors
    • Distributed multi-processor closed loop servo control system
    • Proprietary gimbal control algorithms

    GIMBAL FIELD OF VIEW

    • Pan: 360 degrees continuous
    • Tilt: +65 to -120
    • Roll: +/- 65
    • Max slew rate: 100 deg/sec

    DATA / COMMUNICATION

    • CAN Bus
    • RS 422 Serial Bus
    • Ethernet
    • Single radio link for wireless communication with:
    • Complete 802.11an: 5.15 - 5.85 GHz, 802.11 bgn: 2.412-2.484GHz
      • Gimbal communications
      • Multirotor communications
      • Camera communications
      • 2x Camera HD video

    WEIGHT

    • Gimbal - 5.7kg (12.6lbs.)
    • Max payload - see chart for combinations

    GROUND STATION

    • Input range: 20-34VDC
    • Consumption: 1.2KW (MAX)
    • Complete MIMO HD downlink and antennas
    • Access point for wireless video transmission to handheld devices
    • Wired connection point for video recorder 12VDC XLR power

    FREE RUNNER

    • Input range: 20-60 VDC
    • Consumption: 960W (MAX)

    ENVIRONMENTAL

    • Operating temperature: -20 to +50 degrees °C (-4 to 122 degrees °F)
    • Weather resistant

    GIMBAL OPERATOR CONTROL UNIT

    • Intergrated battery
    • Spare battery and charger included
    • HD video decoder (HDMI or SDI output)
    • Lightweight
    • Customizable video overlay for monitor output
    • Camera remote integration (Sony, Canon, Arri, Phantom)
    • Left and right handed joystick operation
    • Harness or hard mounted

    OPTIONS

    • Remote controlled rotating polarizer
    • Bowl Mount
    • Licensed downlink - mesh networks & licensed frequencies
    • Geo referenced overlay
    • Third party geo mapping integration
    • Log VFX data (GPS, FIZ, etc)
    • Cone Mount
